Stone Railing Cutting Machine

Name: Stone Railing Cutting Machine
Brand: StoneSawMachine.com
Price: 1 USD

Brand Name : StoneSawMachine.com

Model Number : MLGJ-600

Certification : ISO9001

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, , T/T

Supply Ability : 20 Sets Per Month

Delivery Time : 30 days after deposit

Packaging Details : Plastic FIlm

Voltage : 380/220/415V,3ph

Weight : 2000KG

Use : granite and marble

Condition : New

Dimension(l*w*h) : 6000 x2000 x2600

Type : Stone Cutting Machine

Warranty : One Year

Control system : PLC SYSTEM

Product name : stone cutting machine

Color : customized

Motor : AC Servo System

Application : Stone Industrial

Spindle : 5.5kw mechanical water cooled ATC type

Name : stone cutting machine

Blade diameter : 350-600mm

Function : STONE CUTTING

Keyword : Stone cutting machine

Contact Now

Stone Railing Cutting Machine

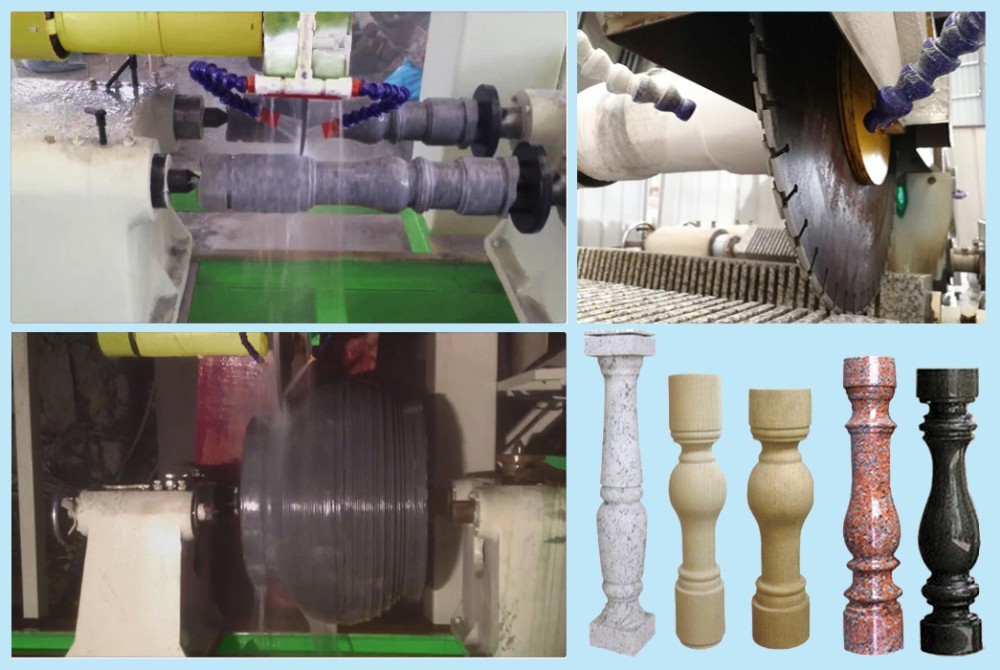

This Railing cutting machine design the microcomputer control, the optical fiber monitoring, capable of processing four workpieces, the circular railing,sphere, column can be cut arbitrary shaped bottom, column cap, cylindrical rotary type stone, changes the manual is not unified, consumption of a large,poor accuracy, automatic control machine, adjustable the size can be achieved after more than one person to operate machine. Machining length can be customized according to customer demand.

Main Features

1) PLC controlled for easy and precise operation.

2) Copying model is available.

3) Pneumatic fastening fixes workpieces.

4) Cutting 2 workpieces at same time.

Technical Data for MLGJ-600
Configuration	Diameter of blade	mm	600
Configuration	Power of main motor	kw	7.5 - 15
Main Performance Parameters	Max. cutting diameter	mm	600 -1pc / 280 -2pcs
Main Performance Parameters	Max. cutting length	mm	200 - 4000
Measurement	Gross weight	kg	3200
Measurement	Dimensions (L x W x H)	mm	6000 x2000 x2600

Stone Railing Cutting Machine
